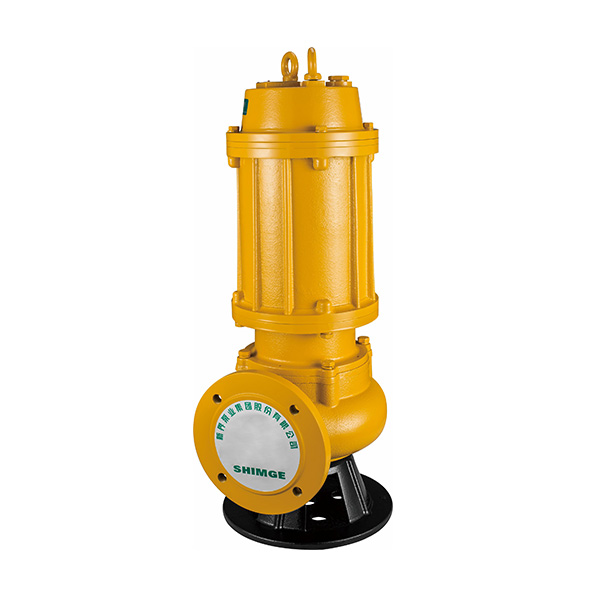

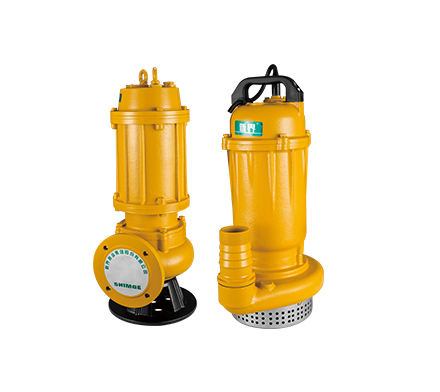

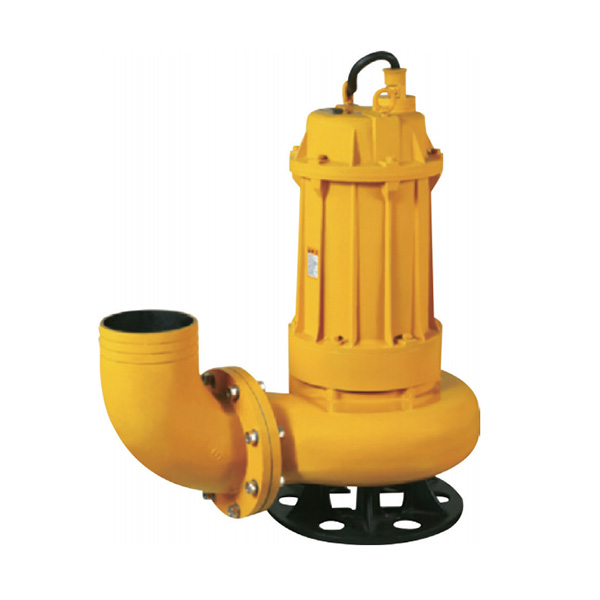

SHIMGE WQ(D) Series Submersible Sewage and Waste Pump

WQD6-12-0.55|WQD6-12-0.55(铁底盘)|WQD6-16-0.75|WQD6-16-0.75(铁底盘)|WQD10-10-0.75|WQD7-15-1.1|WQD15-9-1.1|WQ6-16-0.75|WQ6-16-0.75(铁底盘)|WQ10-10-0.75|WQ15-7-0.75|WQ7-15-1.1|WQ15-9-1.1|WQ12-15-1.5|WQ18-15-1.5|WQ25-7-1.5|WQ25-10-1.5|WQ9-22-2.2|WQ15-20-2.2|WQ25-15-2.2|WQ27-15-2.2|WQ35-7-2.2|WQ42-9-2.2|WQ15-30-3|WQ20-22-3|WQ25-20-3|WQ37-13-3|WQ43-13-3|WQ50-7-3|WQ50-10-3|WQ40-15-4|WQ60-10-4|WQ15-40-5.5|WQ30-30-5.5|WQ65-15-5.5|QW65-20-7.5|WQ80-15-7.5(第二版)|WQ100-10-7.5(第二版)|WQ100-23-11|WQ130-15-11

SHIMGE Pump Industry’s WQ(D) series submersible sewage pumps consist of three main components: the pump unit,the sealing system,and the electric motor. Characterized by a compact structure and high overload capacity,they are suitable for a wide range of sewage discharge applications. The pumps utilize a combination of mechanical seals and lip seals (or dual-face mechanical seals) to ensure reliability,while the rotor shaft is made of stainless steel to enhance wear and corrosion resistance.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Applications:

This series of electric pumps is widely used in sectors such as industry, agriculture, mining, civil engineering, and municipal environmental protection. They are ideal for pumping muddy water, greywater, domestic wastewater, sewage, and effluent containing solid particles (such as short fibers, paper scraps, and silt), as well as for agricultural irrigation and drainage and the desilting of rivers and ponds.

Operating Conditions:

The electric pump is designed to operate continuously and normally under the following conditions:

1. Medium temperature not exceeding +40°C;

2. pH value of the medium between 4 and 10;

3. Maximum density of the medium: 1.2 × 10³ kg/m³;

4. Power supply frequency of 50 Hz; voltage of 220 V (single-phase) or 380 V (three-phase), with a voltage fluctuation range of ±10% of the rated value;

5. Submersion depth not exceeding 5 m.

Parameters

Specifications and Model	Rated flow rate (m³/h)	Rated Head (m)	Rated Power (kW)	Rated voltage (V)	Current (A)	Pipe diameter (mm)	Overall dimensions (mm)	Net Weight (kg)	Head operating range (m)
WQD6-12-0.55	6	12	0.55	220	4.1	51	245*420	18	Total head
WQD6-12-0.55	6	12	0.55	220	4.1	51	245*425	19	Total head
WQD6-16-0.75	6	16	0.75	220	5.2	51	245*420	20	5-18
WQD6-16-0.75	6	16	0.75	220	5.2	51	245*425	21	5-18
WQD10-10-0.75	10	10	0.75	220	5.2	51	312*440	26	Total head
WQD7-15-1.1	7	15	1.1	220	7.3	51	255*470	28	3-18
WQD15-9-1.1	15	9	1.1	220	7.3	51	320*470	29	Total head
WQ6-16-0.75	6	16	0.75	380	2.0	51	245*420	20	8-18
WQ6-16-0.75	6	16	0.75	380	2.0	51	245*425	20	8-18
WQ10-10-0.75	10	10	0.75	380	2.0	51	312*440	26	Total head
WQ15-7-0.75	15	7	0.75	380	2.0	51	312*440	26	Total head
WQ7-15-1.1	7	15	1.1	380	2.7	51	255*470	28	3-18
WQ15-9-1.1	15	9	1.1	380	2.7	51	320*470	29	Total head
WQ12-15-1.5	12	15	1.5	380	3.6	51	340*540	36	Total head
WQ18-15-1.5	18	15	1.5	380	3.6	51	347*540	41	Total head
WQ25-7-1.5	25	7	1.5	380	3.6	64	350*545	35	Total head
WQ25-10-1.5	25	10	1.5	380	3.6	51	331*534	38	Total head
WQ9-22-2.2	9	22	2.2	380	5.1	51	330*560	42	Total head
WQ15-20-2.2	15	20	2.2	380	5.1	51	330*560	44	Total head
WQ25-15-2.2	25	15	2.2	380	5.1	64	384*568	45	Total head
WQ27-15-2.2	27	15	2.2	380	5.1	64	367*568	45	5-22
WQ35-7-2.2	35	7	2.2	380	5.1	64	384*568	45	Total head
WQ42-9-2.2	42	9	2.2	380	5.1	64	376*594	47	Total head
WQ15-30-3	15	30	3	380	6.7	51	362*551	48	20-35
WQ20-22-3	20	22	3	380	6.7	64	360*560	57	10-28
WQ25-20-3	25	20	3	380	6.7	64	360*560	49	10-28
WQ37-13-3	37	13	3	380	6.7	64	400*610	54	Total head
WQ43-13-3	43	13	3	380	6.7	76	405*602	61	Total head
WQ50-7-3	50	7	3	380	6.7	76	405*602	61	Total head
WQ50-10-3	50	10	3	380	6.7	76	405*602	63	Total head
WQ40-15-4	40	15	4	380	8.8	76	370*665	73	Total head
WQ60-10-4	60	10	4	380	8.8	102	455*705	75	Total head
WQ15-40-5.5	15	40	5.5	380	11.7	51	395*670	78	Total head
WQ30-30-5.5	30	30	5.5	380	11.7	76	405*710	80	Total head
WQ65-15-5.5	65	15	5.5	380	11.7	102	450*750	93	Total head
QW65-20-7.5	65	20	7.5	380	15.7	102	498*733	115	Total head
WQ80-15-7.5	80	15	7.5	380	15.7	102	498*733	115	Total head
WQ100-10-7.5	100	10	7.5	380	15.7	102	562*733	118	Total head
WQ100-23-11	100	23	11	380	23.8	102	710*995	238	15-30
WQ130-15-11	130	15	11	380	23.8	152	750*995	241	Total head
WQ150-13-11	150	13	11	380	23.8	152	750*995	238	Total head
WQ180-11-11	180	11	11	380	23.8	152	750*995	238	Total head
WQ300-6-11	300	6	11	380	23.8	203	885*1015	266	Total head
WQ360-6-11	360	6	11	380	23.8	203	861*1040	284	Total head
WQ100-30-15	100	30	15	380	31.7	102	710*995	255	Total head
WQ150-17-15	150	17	15	380	31.7	152	750*995	253	Total head
WQ180-15-15	180	15	15	380	31.7	152	750*995	253	Total head
WQ250-11-15	250	11	15	380	31.7	203	855*1010	283	Total head
WQ400-7-15	400	7	15	380	31.7	203	861*1040	297	Total head
WQ100-32-18.5	100	32	18.5	380	38.7	102	775*1055	323	20-40
WQ180-20-18.5	180	20	18.5	380	38.7	152	800*1070	341	Total head
WQ250-15-18.5	250	15	18.5	380	38.7	203	850*1065	357	Total head
WQ100-37-22	100	37	22	380	44.9	102	775*1055	336	25-45
WQ180-25-22	180	25	22	380	44.9	152	800*1070	351	Total head
WQ250-18-22	250	18	22	380	44.9	203	850*1065	362	Total head
WQ400-10-22	400	10	22	380	44.9	203	861*1096	370	Total head
